HM-150N
HM-150
HM-150은 더블빔 시스템을 채택하여 높은 정확도와 재현성을 향상시킨 헤이즈미터
입니다. CIE표준광원인 D65광원뿐만 아니라 A광원(옵션)으로 자유롭게 변경할 수 있습니다.
또한 새로운 표준인 ISO 13468, ISO 14782, JIS K 7361, JIS K 7136을 만족하며 기존
JIS K 7105에 의한 측정도 가능합니다.
제공되는 PC 소프트웨어를 통해 기기의 제어와 각 데이터를 계산하는 등 전자동방식으로 항상 안정된 결과를 얻을 수 있습니다.
소형 프린터(옵션)을 사용하여 현장에서 쉽게 측정데이터의 출력이 가능하며, 측정항목으로는 전광선 투과율, 확산광선 투과율, 평행광선 투과율 및 헤이즈를 얻을 수 있습니다.
 |
 |

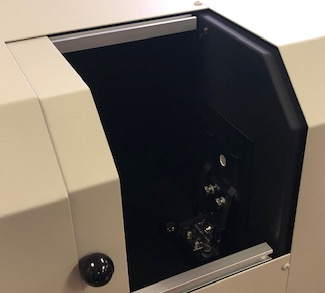

| No Sample |

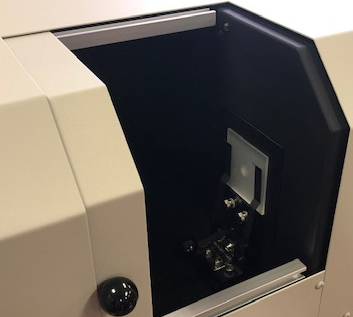

Sample Placed |
| Specifications |
| |
HM-150N |
HM-150L2N |
HR-100 |
| Measurement Method |
Double-beam system |
Single-beam system |
| Sample size |
50x50 up to 150x180 |
50x50 up to 400x400 |
50x50 up to 150x200 |
| Light flux |
Entrance Port: Dia.20
Light Flux: Dia.14
|
Entrance Port: Dia.27.6
Light Flux: Dia.19
|
| Resolution |
0.01% in full scale |
0.1% in full scale |
| Measurement items |
Tt, Td, Haze and Tp |
Transmission: Tt, Td, Haze, and Tp
Reflection: Rt and Rd
|

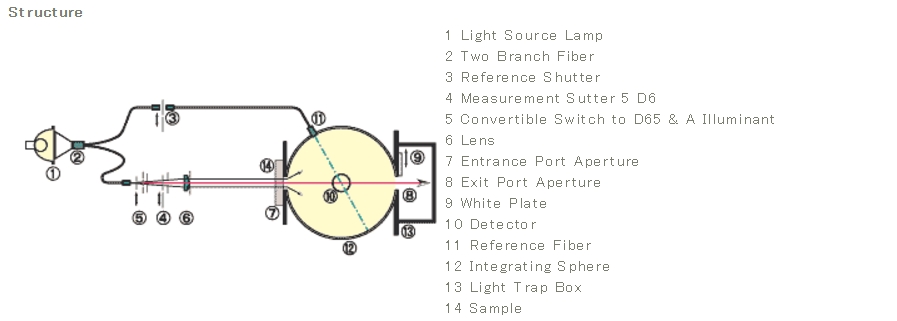

| Optical System |
Conforms to ISO14782, JIS K7136 for Haze measurement
ISO13468-1, JIS K 7361 for Total Transmittance
Approximating to ASTM D1003&JIS7105)
|
| Spectral Characteristics |
CIE standard photometric observer and CIE standard illuminant D65. |
CIE standard photometric observer and CIE standard illuminant D65 & A |
| Light Source |
Halogen Lamp with a dichromic mirror, 12V/50W
Lamp Life 2000 hrs. Nominal
|
Halogen Lamp 12V/50W Lamp life 2000 hrs. Nominal |
| Computer Interface |
USB |
RS-232 |
| Dimensions |
L230xW560xH220mm |
L300xW420xH560mm |
L720xW275xH270mm |
| Weight |
Approx. 13kgs |
Approx. 16kgs |
Approx. 27kgs |
| Power Repuirement |
100V AC, 50/60Hz
Power consumption: Abt. 150W
|
100V +/-10V AC, 50/60Hz
Power Consumption: Abt. 150W
|
| Environmental conditions |
Temperature: 10 up to 40 deg., Humidity: Within 70%(without condensation) |
| Accessory |
Power code, Spare lamp, Spare fuse, User's manual, Cover, Accessories box, Connection cable and CD-ROM for software |
| |
|
Foot switch |
Foot switch, Light trap box, white plate for haze compensation, white plate and Prism for measurement for reflectance |
| Option |
Film Holder, Glass cell for measurement for liquid, Foot switch |
Film holder |
Film holder, Glass cell for measurement for liquid |
